Vibrating Screen For Gold

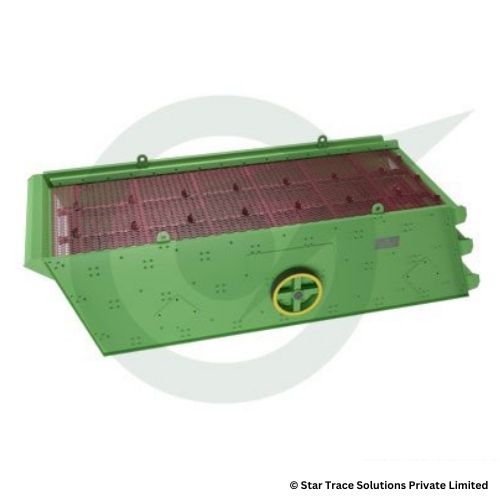

The circular motion screens consist of a screen box, supporting device, vibration exciter, and transmission part. The barrel-type vibration exciter of the circular motion screens is installed in the middle part of the machine. During the normal operation procedure of a circular motion screens, the vibration of the exciter will drive the screen mesh fixed on the screen box to vibrate, and then materials will be screened.

Circular Motion Screens are mainly used in the chemical industry, power stations, steel works, coal plants, mines, building sites, etc. Our scalping circular motion screens can be customized to meet various requirements, like high-quality and safe operations and single or multiple screen decks. Sand, gravel, building materials, minerals, ores, pellets, sinter coal, coke, lignite, limestone, dolomite, chemical products, and fertilizers are efficiently handled by Circular Motion Screens.

The vibrator unit of circular motion screen is a steel shaft, completely housed in a protective steel tubular casing, which in turn is provided with an easily replaceable rubber cover to resist damage and abrasion. The balance weights of the motion screen are keyed to the shaft. The bearings are specially designed for use in circular motion screens and are a high-capacity self-aligning double roller type.

The Circular Motion Screen bearings have special tolerances and improved lubrication facilities to extend their bearing life under arduous working conditions. Labyrinth-type grease sealing is provided in circular motion screens to prevent dust from getting into bearings. A deep-groove V-belt pulley is bored eccentrically to ensure true running and to obviate the belt whip.

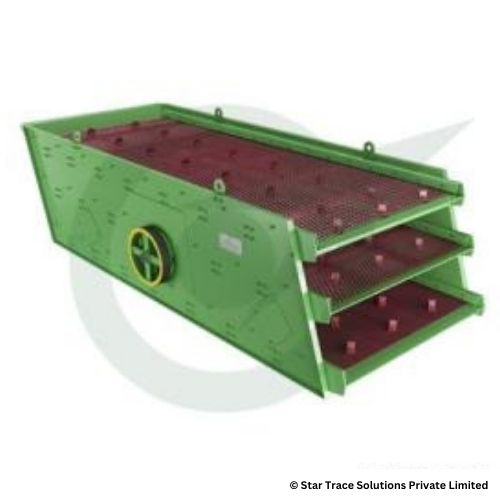

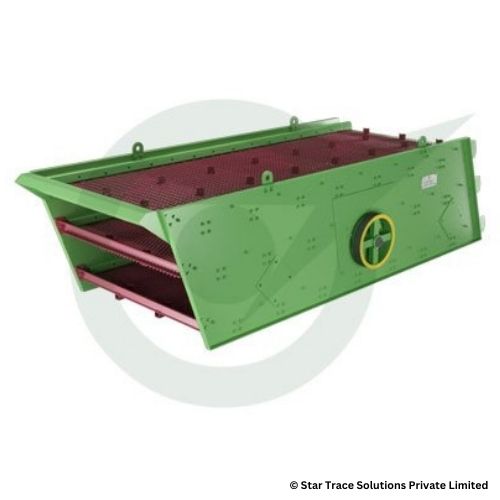

The circular motion screens are bolted single- or multi-deck structures with a substantial and rigid design. The circular motion screen body consists of two side plates with bolted transverse supports and screen mounts. The screen's box is based on an open design. The circular motion screen drive shaft, with its eccentric weights, runs on heavy-duty self-aligning roller bearings. The throw of the vibrating screens is varied by adjusting the eccentric weights.

The drive is either direct or through a cordon shaft and v-belts. The circular-motion vibrating screens are supported above the substructure by means of helical coil compression springs. The circular motion screen's installation angle can be varied to suit the application. There are several options for lubrication: oil or grease, which can be used without modification. Selected bearing seals ensure a long service life.

A Type Circular Motion Vibrating Screens consist of a screen box, screens, vibrating motor, reducing setting, and base plate. The angle of the screens in the Circular Motion Screen could be changed by the adjustment of the height of the base plate. Usually, the vibrating motor is fixed on the right side of the screen frame. We have all sorts of screens for our users to choose from.

• In the Circular Motion Screen, two similar vibrating motors that rotate synchronously in different directions make the screen body do periodical to-and-fro linear moving to achieve the screen classification purpose.
• The crossbeam and side boards of screens in the Circular Motion Screen are made of stainless steel plate or heat-resisting plate and connected by the rivets to decrease internal stress and make good fastness.

Circular motion screens (single-shaft) When the shaft of an inclined screen is located precisely at the screen's center of gravity, the entire screen's body vibrates with a circular vibration pattern. Occasionally, the shaft is installed above or below the center of gravity, as in the system; this placement results in an elliptical motion, slanting forward at the feed end. Thus, in the Circular Motion Screen there is circular motion at the center and an elliptical motion slanting backward at the discharge end. Forward motion at the feed end is used to move oversize material rapidly out of the feed zone to keep the bed as thin as possible.

This action of Circular Motion Screens facilitates the passage of fines, which should be completely removed in the first one-third of the screen's length. As the oversize bed thins down near the center of the screens, the motion gradually changes to a circular pattern to slow down the rate of travel of the solid. At the discharge end, the oversize and remaining near-size material are subjected to the increasingly retarding effort of backward elliptical motion. This gives the near-size material more time to find openings in the screen cloth.

The following are the features of Circular Motion Screens:

• Quick changing of screen mats and of the specially developed removable names to allow lengthwise tensioning using simple screw connections
• The circular motion screen is economically equipped to meet customers' requirements with screen decks made of spring steel wire and perforated sheet wire. Perforated sheet metal, rubber, or polyurethane ensures optimal utilization of the screening area by a deck arrangement that is adapted to suit the grain size concerned, namely longitudinal, transverse, inserted, and laid linings.
• Low noise level with grease-lubricated circular drive units that run extremely quietly and are of a stable design with low harmonic oscillation.
• Circular Motion Screen exhibit high availability and operational reliability as the result of a highly developed design and quality standard.
• Low maintenance costs result from a direct drive using a normal commercial motor and a maintenance-free card and shaft.
• Circular Motion Screen facilitates easy, quick installation and trouble-free removal of worn-out and replacement parts by the use of screw connections.

The following are the features of Circular Motion Screens:

• Quick changing of screens mats and of the specially developed removable names, to allow lengthwise tensioning using simple screw connections.
• The Circular Motion Screen is economically Equipped to customer's requirements with screens decks made of spring steel wire perforated sheet wire Perforated sheet metal, rubber or polyurethane optimum utilization of the screening area by a deck arrangement which is adapted to suit the grain size concerned, namely longitudinal, transverse, inserted and laid linings.
• Low noise level with grease lubricated circular drive units which run extremely quiet and are of a stable design with low harmonic oscillation.
• Circular Motion Screen exhibit high availability and operational reliability as the result of a highly Developed design and quality Standard.
• Low maintenance costs resulting from a direct drive using a normal commercial motor and maintenance free card and shaft.
• Circular Motion Screen facilitate easy, quick installation and trouble free removable of worn-out and replacement parts by the use of screw connections.

Our scalping circular motion screens can be customized to meet various requirements. They ensure high-quality and safe operations with single or multiple screens decks.

• Sand and Gravel
• Building materials
• Minerals
• Ores
• Pellets
• Sinter coal
• Coke
• Lignite
• Limestone
• Dolomite
• Chemical products
• Fertilizers

Circular Motion Screens are mainly used in:

• Chemical industries
• Power stations
• Steel works
• Coal plants
• Mine
• Building sites
