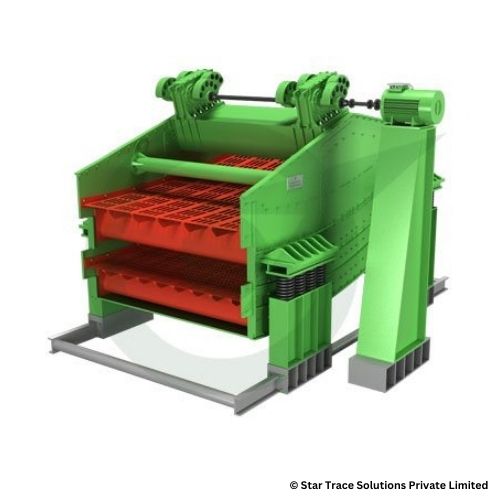

Star Trace Solutions Private Limited banana vibrating screen , the shape of which is just like a banana, is a linear vibrating screen with a box type exciter, and the screen deck divide into several zones with different dip angles. From the feed end to the discharge, the ratio of materials quantity and flow speed on different zones is stable. Compared with common vibrating screen, the handing capacity can increase by 1.5 to 2 times, it is excellent for medium and fine size materials.
APPLICATION of banana vibrating screen:
The screen is mainly used for the classification of large and medium size materials with high content of fine particles , meanwhile the screen can be used for dewatering, demediuming and desliming.
- Iron ore & gold powder.
- Coal powder.
- Aggregates.
- Sand & gravel.
- Hard rock, limestone, ore.
CHARACTERISTICS of banana vibrating screen:
- Banana screen adopts constant bed thickness of screening principle and multi-angle of screen surface(three slopes) in the design. The shape of screen box is just like a banana, and the screen deck divides into three sections with different inclination angles. From the feed end to the discharge, the sieving rate and flow speed on different zones are varying.
- Three axle driving with elliptical motion trail.
- Combined with large processing capacity and high screening efficiency.
Specification of banana vibrating screen:
| Model | Screen cloth layers | Mesh size (mm) | Mesh size (mm) | Production capability (t/h) | Motor power (Kw) | Weight (Kg) |
| 2ST1235 | 2 | 5/1/2020 | 400 | 60-210 | 5.5 | 3600 |
| 3ST1545 | 3 | 5/1/1950 | 400 | 110-385 | 15 | 6800 |
| 2ST1848 | 2 | 5/1/1980 | 400 | 25-206 | 15 | 9080 |
| 2ST1854 | 2 | 5/1/2000 | 400 | 200-450 | 18.5 | 8600 |
| 3ST1860 | 3 | 5/1/2000 | 400 | 250-600 | 22 | 9200 |
| 3ST2160 | 3 | 6/1/2000 | 400 | 300-750 | 37 | 12800 |
| 3ST2460 | 3 | 6/1/2000 | 400 | 400-850 | 45 | 14100 |
| 4ST1848 | 4 | 5/1/1980 | 400 | 32-285 | 22 | 11100 |
