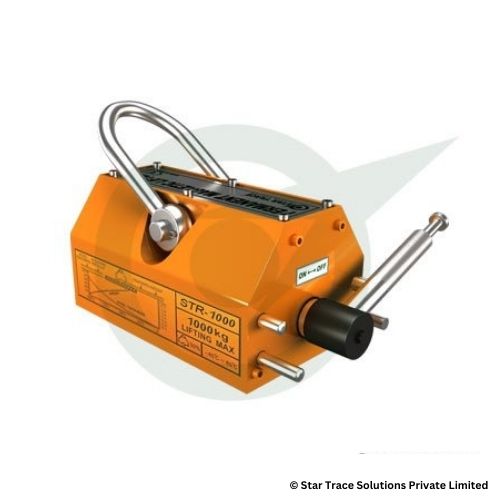

Permanent Magnetic Lifter

Permanent lifting magnets are small wonders which are capable of lifting objects multi fold their weight. They are safe, efficient and time saving when compared to manual handling. Physical handling involves a lot of risk, there are possibilities of miss judgement of the load to be handled and may result in irreversible damage to humans and finished products.

On the other hand permanent lifting magnet never brings in chances of mishap, when adhering to instruction manual rules. Permanent magnetic lifter uses a powerful Neodymium magnet seated inside a fully covered case compact in nature. Magnetic activity is brought to contact with the material to be lifted upon operating a lever. Once the permanent lifting magnet is engaged to work there is perfection till completion and the lever can be brought to off position.

There are varied sizes in permanent lifting magnet. The grading of magnet is basically on their capacity to lift heavy objects. Lifting a small weight does not require a very powerful permanent lifting magnet at the same time a small permanent magnet would not be efficient enough, so great care has to be taken in choosing the right sized permanent magnetic lifter. Construction and working: Powerful Neodymium magnet is contained in a non erosive case. On / off leaver is facilitated to engage / disengage the permanent magnet into activity. A strong hook is provided on top to attach the lifting magnet to the moving crane or any other device used for shifting. NO electricity is required for the operation.

OPERATING THE PERMANENT MAGNETIC LIFTER

If a low carbon steel plate has to be transported from shop floor to transportation area the steps to be followed are as follows

  • Place the Lifting Magnet on the steel plate assessing it center.
  • Turn on the handle from OFF position to ON.
  • Connect the hook of the Lifting Magnet with the fastening strap or clasp of the lifer.
  • Lift gently and start moving towards the direction of placement.
  • Upon reaching the spot place it on a firm place.
  • To release the Permanent Lifting Magnet off its magnetic activity bring the lever to off position.
  • The lifer can now be removed and same process can be repeated.
Please note:
  • The surface of the object to be lifted must be free from grease.
  • Assess the weight of the load and center of gravity as accurately as possible.
  • Ensure that the lever is moved to the extremes for fixture as well as release.
  • Make sure the cargo is released of all fastenings before lifting.
  • Take note of the flexibility of the load.
  • Permanent Magnetic Lifter does not lift plastic, wood, aluminum or fibrous material.
WHERE ARE PERMANENT MAGNETIC LIFTER:
  • Warehouses where heavy material handling is regular.
  • Loading and unloading of machines.
  • Transferring coiled steel sheets (both vertical & horizontal) to processing or cutting area.
  • Piling or stacking in containers for shipment.

The Permanent Magnetic Lifter of Star Trace Solutions Private Limited undergoes multi level checking to ensure quality and standards in every step of its making. Durability, excellence and cost effectiveness are our trademarks, which have contributed to our strong footing in the industry.

SPECIFICATION OF PERMANENT MAGNETIC LIFTER:

Technical Data of Permanent Magnetic Lifter

Model No Holding Value
Flat Items (Kg)		 Holding Value
Round Items (Kg)		 Length
mm		 Width
mm		 Height
mm		 Weight
mm
STR 100 100 50 100 65 70 5
STR 200 250 250 150 100 100 10
STR 600 600 300 250 120 115 25
STR 1000 1000 500 320 175 160 30
STR 2000 2000 1000 375 230 210 125
STR 3000 3000 1500 460 285 260 220
STR 6000 6000 3000 600 430 355 420
Stated Value Model No. Holding Value & Max. Sheet Size for Specified Material Thickness
5 mm 6 mm 9 mm 12 mm 19 mm 25 mm
100 Kgs STR 100 63 Kgs (4' x 4') 75 Kgs (4' x 4') 113 Kgs (4' x 4') 85 Kgs (3' x 3') 89 Kgs (2' x 3') 89 Kgs (2' x 2.5')
250 Kgs STR 250 94 Kgs (4' x 6') 123 Kgs (4' x 6') 275 Kgs (4' x 8') 300 Kgs (4' x 8') 296 Kgs (4' x 5') 296 Kgs (4' x 4')
600 Kgs STR 600 - - - 365 Kgs (4' x 8') 600 Kgs (4' x 8') 600 Kgs (4' x 8')
1000 Kgs STR 1000 - - - - 440 Kgs (4' x 8') 656 Kgs (4' x 8')
